Energy-saving Wood Crusher
Introduction
Small Wood Crusher Machine integrates slicing and crushing. It can cut wood with a chip diameter of 1-20 cm. It can also be used for cutting and crushing fibrous stalk-like materials such as bamboo, thatch, corn stalk, sorghum stalk, and corn cob. Small Wood Crusher Machine is a new type of wood crushing production equipment.
Wood Crusher Machine is especially suitable for the processing of wood chips in the edible fungus culture medium, and can also be used as the raw material for the production of high-density board of particle board and sawdust board.
Materials&Usage&Sizes
86% Visitors ENQUIRED NOW and Got the Following Gifts Freely
1. 2021 Full Catalogue
2. 2021 Full Price List
3. Technical Brochure
4. Operation Manual
5. A Surprising Discount
6. Some Free Accessories
Features&Advantages
Heightened, lengthened, and widened round log inlet
Lengthened, widened and thickened tree branch inlets

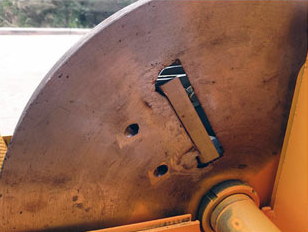

Double crushing of knife roller and hammer, high output efficiency
China top WuXing engine, pure copper coil, service life can reach more than 10 years
High temperature quenching heat treatment of hammer blades, the service life is twice that of ordinary hammer blades
Alloy Steel Hammer, long wear-resistant service life, high cutting efficiency
Optional wheels and traction device, hand jack, mobile operation anytime&anywhere

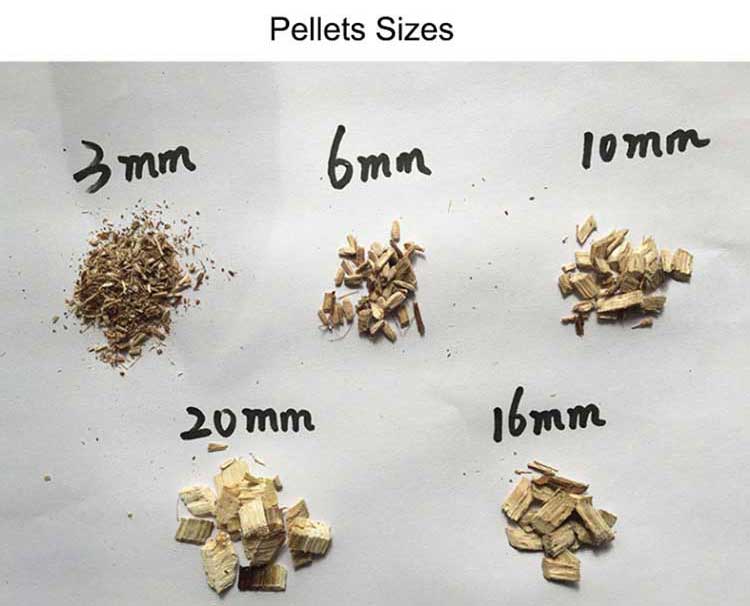

Various screen sizes are available, particle size after crushing is 3-20 mm
Three-layers spray paint, 20 years of anti-rust, paint color can be customized, spray paint uniformly, machine polished smooth
Three optional power modes: electric motor, gasoline engine, diesel engine
Small wood crusher machine for sale is made of 5mm thick steel plate, long service life
86% Visitors ENQUIRED NOW and Got the Following Gifts Freely
1. 2021 Full Catalogue
2. 2021 Full Price List
3. Technical Brochure
4. Operation Manual
5. A Surprising Discount
6. Some Free Accessories
Parameters
| MODEL | POWER(KW) | OUTPUT（T/H） | ROLLER BLADE(PCS) | MAXIMUM CRUSHING DIAMETER(CM) | CARTON SIZE(MM) & GROSS WEIGHT(KG) |
|---|---|---|---|---|---|
| AKF-420 | 7.5 | 1 | 4 | 13 | ELECTRIC MOTOR：1350*750*990，240KG DIESEL ENGINE：1850*720*990，15HP |
| AKF-450 | 11 | 1.3 | 4 | 13 | ELECTRIC MOTOR：1350*750*990，250KG DIESEL ENGINE：1850*720*990，25HP |
| AKF-500 | 18.5 | 1.5 | 4 | 15 | ELECTRIC MOTOR：1500*750*1050，420KG DIESEL ENGINE：1950*800*1150，550KG |
| AKF-600 | 30 | 2 | 4 | 20 | ELECTRIC MOTOR：1600*750*1100，510KG DIESEL ENGINE：2050*850*1300, 620KG |
| AKF-700 | 37 | 2.5 | 6 | 22 | ELECTRIC MOTOR：1800*850*1200, 670KG DIESEL ENGINE：2100*1200*1400，790KG |
| AKF-900 | 55 | 2-4 | 8 | 24 | ELECTRIC MOTOR：1950*1100*1300，1100KG DIESEL ENGINE：2400*1400*1450, 1300KG |
| AKF-1000 | 75+7.5 | 4 | 8 | 28 | ELECTRIC MOTOR：2150*1250*1400, 1500KG DIESEL ENGINE：2650*1400*1450, 1800KG |
Package&Transportation
Small wood crusher machine for sale is wraped 5 layers of plastic film to avoid moisture and bumps
Thickened pallets and wooden boxes for export to protect the small wood crusher machine for sale from damage
By sea, rail, and air, small wood crusher machine will be delivered to you in time within 7-30 days
