vertical dryer

Introduction

The vertical dryer blows the constant high temperature wind into the drying barrel through the drying wind, and after baking the raw materials, the original moisture in the barrel is taken away to achieve the purpose of removing the moisture in the place.

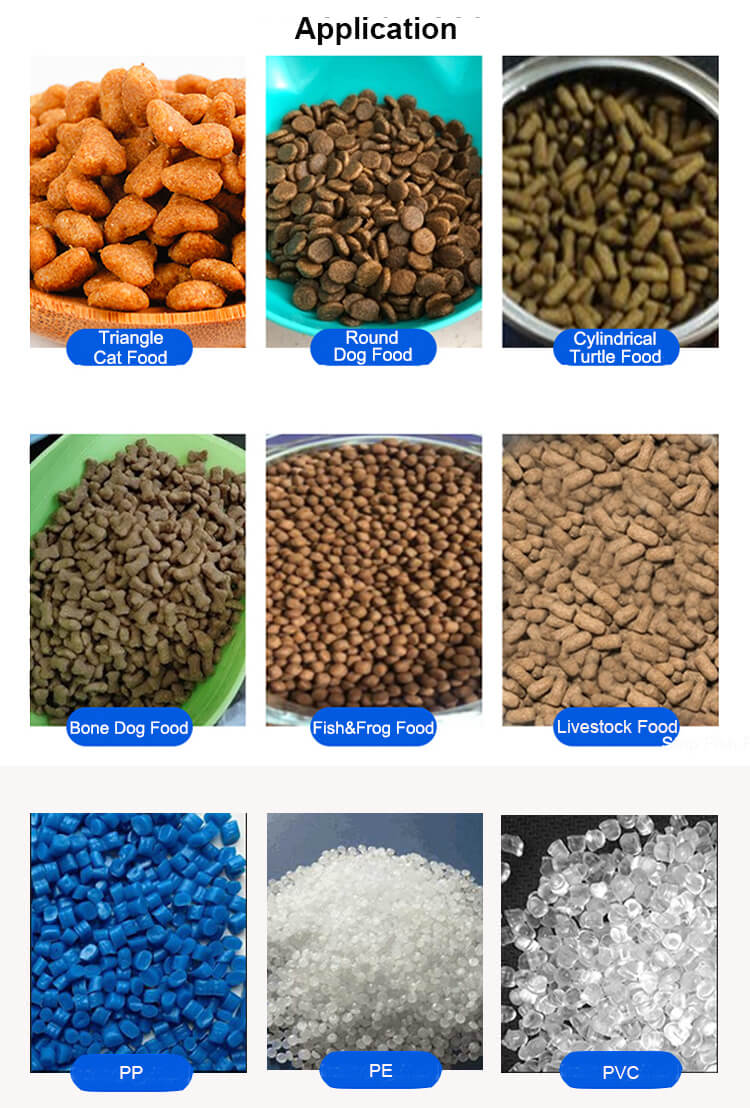

Vertical dryers are widely used to dry cat food, dog food, pet food,fish feed pellet and other animal feed pellets, and are also used to dry plastic pellets.

Working principle: The wind blown by the fan becomes high-temperature dry hot air after being heated by electric heating. The hot air can be evenly dispersed in the drying barrel and the raw materials in the air-drying barrel through the screen protector and the hole screen.

Materials&Usage&Sizes

86% Visitors ENQUIRED NOW and Got the Following Gifts Freely

1. 2021 Full Catalogue

2. 2021 Full Price List

3. Technical Brochure

4. Operation Manual

5. A Surprising Discount

6. Some Free Accessories

Features&Advantages

Parameters

TypeDiameter(mm)External Size(mm)Capacity(kg)Heater Power(kw)Base Installation Size(mm)
GRGZ-12KG280640*430*780121.8110*110*45
GRGZ-25KG350760*500*900253.5150*160*75
GRGZ-50KG430840*540*1030504.5160*160*75
GRGZ-75KG470950*600*1140755.5160*160*75
GRGZ-100KG5501080*700*12501006.5180*180*80
GRGZ-150KG6301120*760*13001509180*180*80
GRGZ-200KG7001250*850*148020012200*210*80
GRGZ-300KG7501300*920*174030015200*210*80
GRGZ-400KG8001400*1040*176040018280*210*120
GRGZ-600KG9901600*1150*215060020280*280*135
GRGZ-800KG10901700*1330*266080030350*350*135
GRGZ-1000KG10901700*1330*2860100040500*500*135

86% Visitors ENQUIRED NOW and Got the Following Gifts Freely

1. 2021 Full Catalogue

2. 2021 Full Price List

3. Technical Brochure

4. Operation Manual

5. A Surprising Discount

6. Some Free Accessories

Package&Transportation

Feedbacks&Reviews

Enquiry Now
